Sub Compact Loader Backhoe
video

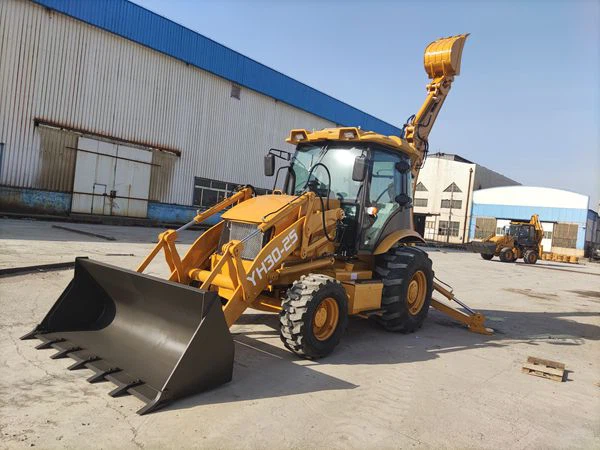

Sub Compact Loader Backhoe

Sub Compact Loader Backhoe

Overall Operating Weight:8200KG
Transport Dimension (L*W*H) mm:6150*2250*3763
Wheel base:2200mm
Min. Ground Clearance:300mm
Bucket Capacity 1.0m3
Send Inquiry
Description
Products Descrip



Sub-compact loader backhoe is a multifunctional small construction machinery that combines the functions of a loader and an excavator and is suitable for a variety of working scenarios. The following are its advantages, methods of use and scope of application:

Advantages:



Versatility: Sub-compact loader backhoe can perform various tasks such as loading, digging, and leveling, so it can perform multiple tasks in a limited space, thereby improving work efficiency.

Compact Design: Due to its small and compact design, it is suitable for narrow working sites, such as urban construction sites, residential areas, etc.

Portability: Due to its small size, the Sub-compact loader backhoe is easy to transport and relocate, suitable for temporary projects or jobs that require frequent movement.

Ease of Operation: Operational controls are relatively simple, usually with an easy-to-understand joystick and control panel, reducing operator training costs.

Strong adaptability: It can be equipped with various accessories, such as different kinds of buckets, drill bits, etc., to make it more adaptable in different tasks.

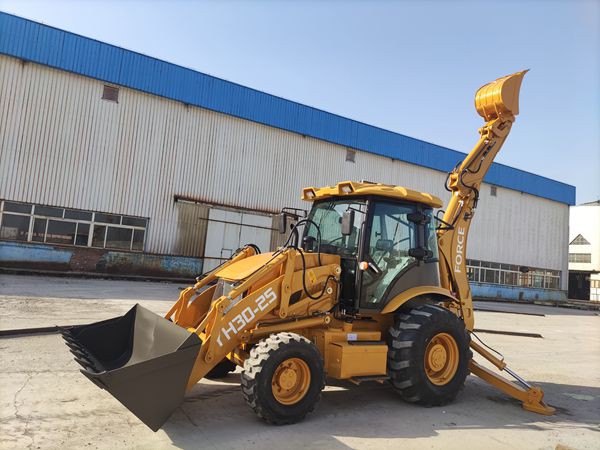

product-600-450
product-600-450

Instructions:



Excavation Operations: Use excavator arms and buckets to perform excavation work such as trenching, digging, digging pits, etc.

Loading operation: Use the front loading bucket for loading, handling, bulldozing and other work, such as loading soil, sand, building materials, etc.

Leveling operation: use the rear loading bucket for ground leveling, land preparation and other work.

Other attachment operations: According to needs, different types of attachments, such as drill bits, can be replaced for drilling operations.

Safe operation: Understand and follow the safety instructions in the operation manual before use to ensure the safety of operators and the surrounding environment.

Scope of application:



Construction site: It is used for excavating foundations, moving materials, leveling the ground, etc.

Agricultural field: It is used for digging drainage ditches, clearing farmland, loading crops, etc.

Municipal maintenance: Used to clear roads, repair pipes, dispose of garbage, etc.

Residential Construction: Due to its compact design, it is suitable for land development and construction in limited space.

Horticultural Landscape: For arranging gardens, pruning plants, tidying landscaping and more.

In conclusion, Sub-compact loader backhoe is a kind of flexible and multi-purpose mechanical equipment, suitable for various work tasks in multiple fields, capable of improving work efficiency and functioning in a limited space.

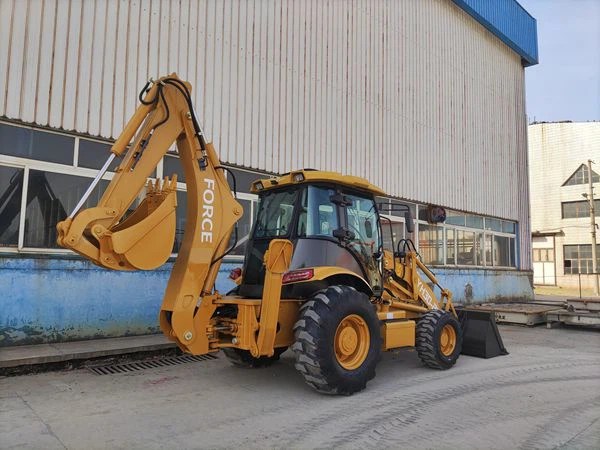

product-600-450
Products specifications



Overall Operating Weight

8200KG

Transport Dimension (L*W*H) mm

6150*2250*3763

Wheel base

2200mm

Min. Ground Clearance

300mm

Bucket Capacity

1.0m3

Breakout Force

38KN

Loading Lifting Capacity

2500KG

Bucket Dumping Height

2742mm

Bucket Dumping Distance

1062mm

Digging Depth

52mm

Backhoe Capacity

0.3 m3

Max. Digging Depth

4082mm

Swing Angle of Excavator Grab

190o

Max. Pulling Force

39KN

Engine (Dongfeng Cummins)

Model

4BTA3.9-C100

Rated Power

74KW/100HP

Rated Speed

2400r/min

Steering System

Model of Steering Device

BZZ5-250

Steering Angle

±36 o

Min. turning radius

6581mm

Pressure of the system

12Mpa

Axle

Manufacturer

Feicheng Axle Factory

Main Transmission Type

Double Reduction

Reducer

Single Stage Final Reducer

Rated Loader of Axle

4/18.5t

Transmission System

Torque Converter

Model

YJ280

Type

Single-stage Three Elements

Max. Efficiency

84.40%

Inlet Pressure

0.4Mpa-0.55 Mpa

Outlet Pressure

1.2Mpa-1.5 Mpa

Cooling Method

Oil-cooling Pressure Circulation

Gearbox

Type

Fixed Shaft Power Transmission

Oil Pressure of Clutch

1373Kpa-1569 Kpa

Gears

Two Gears Ahead, Two Gears Astern

Max.Speed

22Km/h

Tyre

Model

14-17.5/19.5L-24

Pressure of Front wheel

0.22 Mpa

Pressure of Back Wheel

0.22 Mpa
