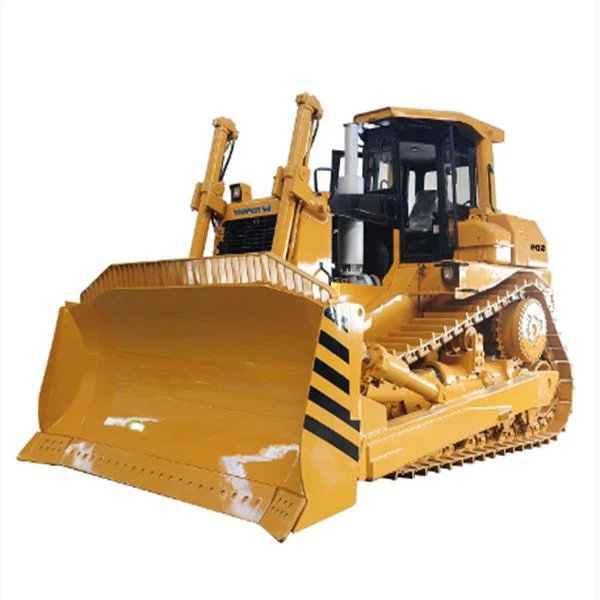

Construction Dozer

Construction Dozer

Technical Data\Model:SD9
Dozer:Tilt
Operating weight without ripper (kg):44580
Ground pressure (kpa);112
Track gauge (mm):2250
Send Inquiry
Description
Products Descrip



In construction, a "dozer" refers to a bulldozer, which is a powerful and heavy-duty construction machine primarily used for earthmoving and land-clearing tasks. Bulldozers are equipped with a large, flat metal blade at the front that can be raised or lowered and tilted, allowing the machine to push large quantities of soil, sand, rocks, or debris forward, backward, or to the sides.

Key features of a bulldozer include:

Blade: The blade is the primary working component of the dozer. It can be used for grading, leveling, pushing materials, and creating ramps or embankments.

Tracks: Unlike wheeled vehicles, bulldozers have continuous tracks, similar to tanks. The tracks distribute the weight of the machine evenly, providing good traction and preventing it from sinking into soft or muddy terrain.

Ripper: Some dozers have a ripper attachment at the rear, which is a claw-like device used to break up hard surfaces like rocky soil, pavement, or compacted ground.

ROPS and FOPS: Most modern bulldozers are equipped with Roll-Over Protective Structures (ROPS) and Falling Object Protective Structures (FOPS) to ensure the operator's safety in case of accidents or rollovers.

Bulldozers are employed in various construction projects, such as road construction, building site preparation, mining operations, forestry, agriculture, and any task that involves moving significant amounts of earth or materials. They come in various sizes, from small, compact dozers to large, heavy machines capable of handling substantial earthmoving projects.



Products specifications



Technical Data\Model

SD9

Dozer

Tilt

Operating weight without ripper (kg)

44580

Ground pressure (kpa)

112

Track gauge (mm)

2250

Min. ground clearance (mm)

517

Gradient

30°/25°

Dozing capacity (m³)

13.5

Blade width (mm)

4314

Max. digging depth(mm)

614

Overall dimensions without ripper(mm)

6592*4314*3970

Engine

Type

KTA19-C525S10

Rated revolution (rpm)

1800

Flywheel power (KW/HP)

316/430

Driving system

Torque converter

Power separating, hydraulic-mechanic type

Transmission

Planetary, power shifting transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted

Steering clutch

Hydraulic pressed, usually separated clutch

Brake clutch

Pressed by spring, separated hydraulic, constant meshed type

Final drive

Two-stage planetary reduction gear mechanism, splash lubrication

Undercarriage system

Type

The track is triangle shape, the sprocket is elevated elastic suspended

Number of track rollers (each side)

8

Pitch (mm)

240

Width of shoe (mm)

610

Gear

1st

2nd

3rd

Forward km/h

0-3.9

0-6.7

0-12.2

Backward km/h

0-4.8

0-8.5

0-15.1

Implement hydraulic system

Max. system pressure (Mpa)

18.3

Pump type

Double vane pump

System output (L/min)

358
