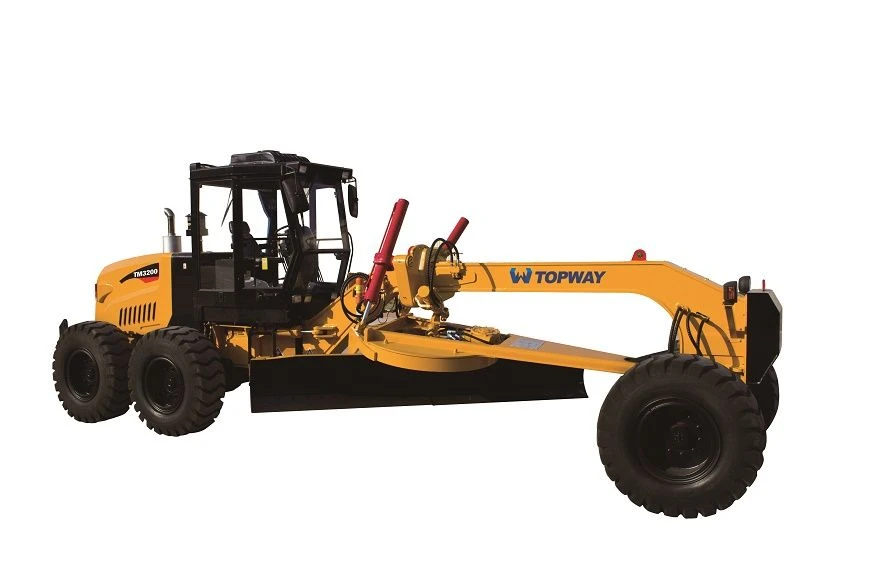

TM3200 215HP MOTOR GRADER are suitable for the leveling, excavating, sloping, bulldozing soil loosening, snow removing and other operations of large sized grounds such as roads, airports, farmlands, etc.
Main Features
1. Motor grader equipped with Cummins turbocharged, inter-cooled diesel engine, hydrodynamic torque converter and transmission gearbox manufactured by Hangzhou Advance Gearbox Group Co., Ltd. with ZF technology, electro hydraulically controlled, easy operation, rear axles is three section drive axle specially designed for grader and equipped with import no spin differential
2. Stable and reliable working hydraulic system with double pump for the grader, dual circuit open system
3. Safe and reliable braking with advanced hydraulic braking control technology.
4. The graders have beautiful cabin features wide vision and good air rigidity equipped with top mounted air conditioner, streamline engine hood with a novel and unique shape ensures easy maintenance and heat dissipation
5. Stable performance, reliable operation, and low fuel consumption
6. Integration of electro-hydraulic control featuring easy operation, stable start up, mild transmission and sufficient power transmission
7. Flexible steering and swing
8. Integration of imported Rexroth hydraulic units for service brake system
9. Two independent brake systems guarantee reliable driving safety
10. Integration Eaton Vickers hydraulic locks for key movement parts, guaranteeing stable and reliable system actions
11. The scraper blade is capable of realizing various cutting angles, working widths, making it easy to adapt to various working conditions
12. The motor graders have spacious front glass helps driver observe working condition of scraper blade
13. Optional equipments, such as Blade, Scarifier, Ripper, Circle and automatic leveling device
Main Specifications
Model \ Technical Parameter | TM3200 | |
Engine | Manufacturer | Dongfeng Cummins Corporation |
Model | 6CTAA8.3-C215 | |
Rated Power (kw/hp) | 160 /215 | |
Rated Speed (rpm) | 2200 | |
Blade | Height*String Height (mm) | 3965*610 |
Reversing Angle (°) | 360 | |
Max. Blade Angle (°) | 90 | |
Cutting Depth (mm) | 500 | |
Drive Type | Motor + worm case | |
Transmission | Type | Electro hydraulic gearshift |
Number of Gears | F6/R3 | |
Forward Speed (Km/h) | 5.1,8.7,11.4, 19.5,24.1,40.1 | |
Reverse Speed (Km/h) | 5.1,11.4,24.1 | |
Drive Type | Rear-axle drive | |
Max. Traction Force (KN) | ≤88 | |
Tyre SPEC | 17.5－25 | |
Front axles | Wheel Lean Angle: (°) | ±17 |
Steering Angle: (°) | ±45 | |
Oscillation Angle: (°) | ±15 | |
Ground Clearance: (mm) | 430 | |
Articulation Angle (°) | 25, right and left | |
Type of Service Brake | Hydraulic disc brake | |
Type of Parking Brake | Hand-operated shoe-type brake | |
Total Weight (Kg) | 16200 | |
Basic Overall Dimensions (mm) (L*W*H) | 9305*2595*3400 | |
