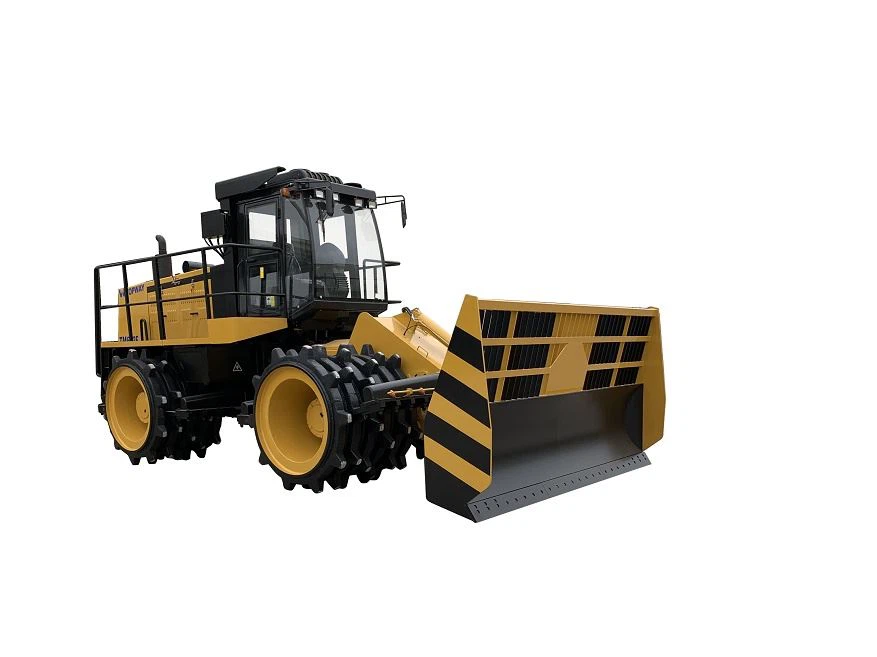

TM632F Landfill compactor designed to deliver outstanding performance and maximum uptime in the toughest environments, this recycling compactor and solid waste compactor delivers a level of reliability, performance, safety, operator comfort, serviceability and efficiency
Main Features
1. The landfill compactor equipped with the Cummins QSM11 engine
2. This solid waste compactor equipped with hydraulic transmission system on four wheels with four motors independently controlled by four pumps
3. The recycling compactor equipped with imported central lubrication system, which can automatically lubricate at preset interval and volume
4. The landfill handler equipped with the spraying device which can spray the pesticide to kill the pests and the bacteria
5. The fully-enclosed box-shape frame structure can effectively prevent the trash from entering into the inside of the machines
Main Specifications
Description | Unit | TM632F | |
Operating Weight | kg | 32000 | |
Front Wheel Distributing Weight | kg | 16000 | |
Real Wheel Distributing Weight | kg | 16000 | |
Travel Speed | F/R I | km/h | 0-4/0-4 |
F/R II | km/h | 0-11.5/0-11.5 | |
Min. Turning Radius(Bucket Outer) | mm | 9000 | |
Theory Max. Gradeability | % | 100 | |
Static Linear Load（F/R） | N/cm | 1269/1532 | |
Ground Clearance | mm | 610 | |
Max. Thrust | KN | 320 | |
Wheelbase | mm | 3500 | |
Blade Adjustment Range | Higher ground | mm | 1200 |
Under ground | mm | 200 | |
Drive Type | Hydraulic transmission | ||
Brake Type | Hydrostatic、Multi-disc、Mechanical | ||
Frame Structure | Oscillating articulation | ||
Turning Type | Hydraulic | ||
Turning Angle | ° | ±40 | |
Swing Angle | ° | ±15 | |
Engine | Model | QSM11 | |
Rated power | kW | 261 | |
Rated speed | rpm | 2100 | |
Dimension of Compacting Wheel | Front wheel | mm | 1620×1350 |
Rear wheel | mm | 1620×1120 | |
Landfill Pushing Plate Size(W×H) | mm | 3800×1930 | |
Working Efficiency | t/h | ≥100 | |
Compacting Density | t/m3 | ≥1.0 | |
Overall Dimension(L×W×H) | 8090×3800×3755 | ||
Why choose us?
- Our team of highly skilled technicians ensures that every Road Roller we produce meets the highest standards of quality and safety.
- Our 32 Ton Landfill Compactors and related products are widely used in various industries at home and abroad for superior performance.
- We believe in offering our customers a personal and tailored service that meets their individual needs.
- International first-class emphasizes that our 32 Ton Landfill Compactors and services are global-oriented, and we must pursue the excellent quality of product and service.
- We are a Chinese factory and offer a range of high-quality Road Rollers.
- Our company adheres to independent innovation, and constantly develops new 32 Ton Landfill Compactors according to market changes and customer needs.
- Our Road Rollers are easy to operate and offer outstanding levels of control and manoeuvrability.
- Our company employs professional talents to focus on research and development, and on the basis of our own strong R&D strength, we constantly explore new methods and summarize new experiences, so that the quality of our products is well received by our customers.
- We are known for our exceptional quality and professional service.
- We have established a relatively complete marketing network throughout the country and become a well-known brand in the industry.
