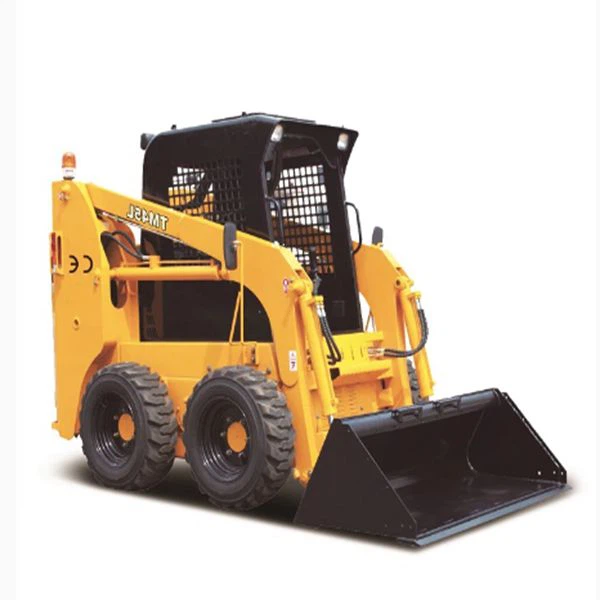

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

Model:TM45L/TM60L
Rated Operating Load (kg):70/850
Max. Travel Speed (km/h):12/12
Rated Flow (L/min):62.5/75
Send Inquiry
Description
Products Descrip



"wheeled skid steer loader" means a wheel-grade steer loader, also known as a wheel utility loader. It is a versatile construction machine used in various construction, agricultural and industrial applications. Here are some of the great features and how to use your wheeled grade steer loader:

Advantages:

High flexibility: The wheeled grade steer loader has excellent maneuverability and can be turned in 360 degrees to make it more convenient to operate in narrow and crowded working areas.

Versatility: Loaders can be equipped with a wide variety of attachments such as buckets, forks, dozers, grabbers, etc. to suit different tasks such as carrying, digging, dozing, leveling, etc.

High efficiency: The loader operates at a fast speed and can complete a large amount of work in a short period of time, which improves work efficiency.

Convenience: The loader has an open cockpit, giving the operator good visibility and easy access to and from the cockpit.

Strong adaptability: The loader is suitable for a variety of ground conditions, including land, sand, mud, etc., and has good passability.

Saving manpower: Loaders can replace manpower for some heavy handling and excavation work, reducing labor costs and labor intensity.

Instructions:

Driving operation: The operator sits in the cockpit and controls the movement and steering of the loader through the steering wheel, pedals, and joysticks. 360-degree swivel steering allows the loader to easily maneuver in tight areas.

Attachment Replacement: Replace appropriate attachments as needed, such as buckets for moving materials, forks for loading and unloading goods, bulldozers for leveling the ground, etc.

Operating skills: When moving materials, keep a steady speed and avoid sudden changes in direction or sudden braking to ensure safety and stability. When digging or dozing, pay attention to the angle and depth of the attachment to avoid excessive loading.

Maintenance: Regularly inspect and maintain the loader, including cleaning attachments, lubricating key parts, replacing worn parts, etc., to ensure its normal operation and prolong its service life.

Safe operation: Operators should undergo professional training, strictly abide by safe operating procedures, and wear necessary protective equipment to ensure the safety of themselves and others.

Reasonable planning: When using a loader, it is necessary to reasonably plan the operation route and operation sequence according to the work needs to improve work efficiency and safety.

In a word, the wheeled grade steer loader plays an important role in various engineering applications due to its flexibility, versatility and high efficiency, but it needs reasonable planning and attention to safe operation during use.





Products specifications



Model

TM45L

TM60L

Rated Operating Load (kg)

700

850

Max. Travel Speed (km/h)

12

12

Rated Flow (L/min)

62.5

75

Tyre Model

12-16.5

12-16.5

Engine Model



Rated power (Kw)

37

45

Fuel Tank Capacity (L)

60

60

Operating Weight(kg)

2600

3000

Bucket Capacity (M3)

0.4

0.45

Overall Operating Height (mm)

3670

3690

Height to Bucket Hinge Pin (mm)

2900

2920

Height to top of Cabin (mm)

2030

2050

Height to Bottom of Level Bucket (mm)

2733

2753

Overall Length without Bucket (mm)

2450

2630

Overall Length with Bucket (mm)

3200

3380

Dumping Angle at Maximum Height (%)

40

40

Dumping Height (mm)

2380

2400

Dumping Reach (mm)

700

750

Rollback of Bucket on Ground (%)

30

30

Rollback of Bucket at Full Height (%)

104

104

Wheelbase(mm)

991

991

Ground Clearance (mm)

185

205

Angel of Departure (%)

20

20

Front Turning Radius without Bucket (mm)

1168

1198

Front Turning Radius (mm)

1958

1958

Rear Turning Radius (mm)

1630

1728

Rear Axles to Bumper (mm)

1108

1208

Tread Width, Centerline to Centerline (mm)

1450

1500

Width (mm)

1720

1880

Bucket Width (mm)

1740

1820
