Products Description

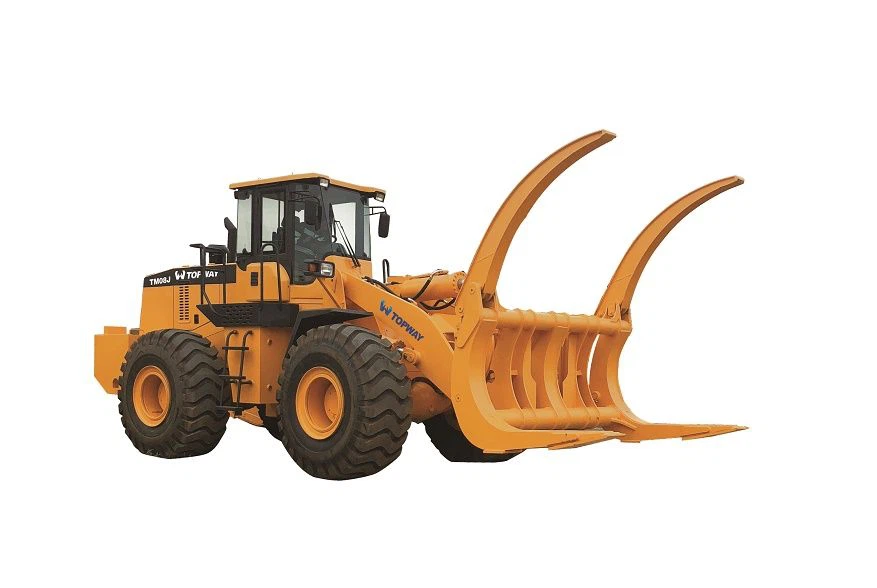

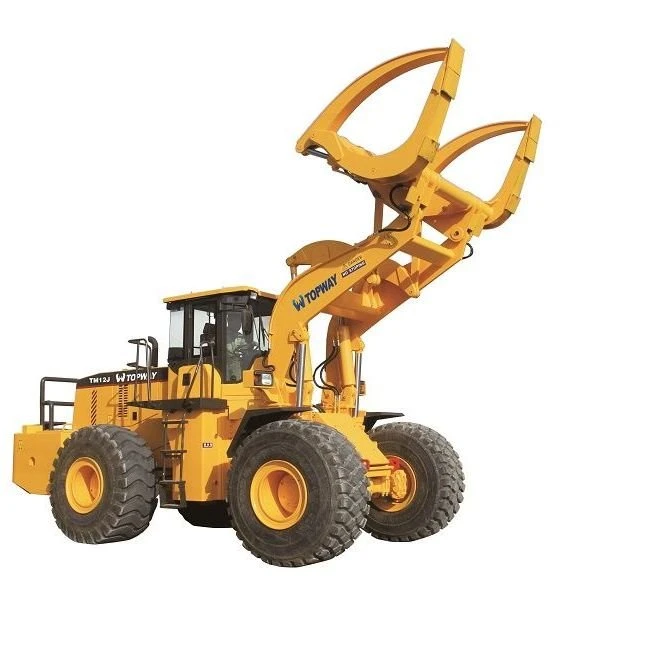

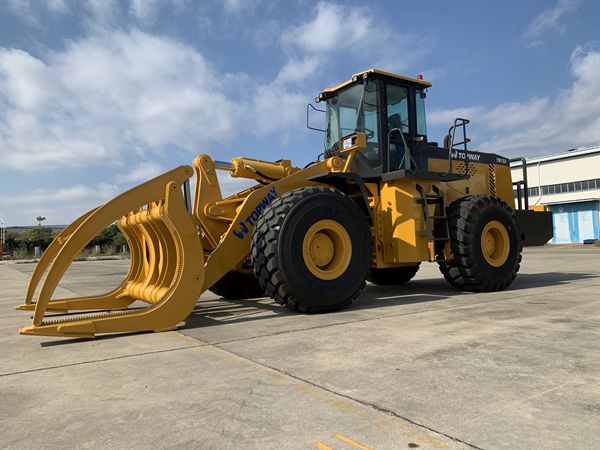

The TM12J 12Ton log grapple wheel loader is a versatile and robust machine perfect for handling large wood logs and heavy timber in the forest or wood yard. This front-end log loader is equipped with a Weichai engine and uses Komatsu technology for its log clamp, providing high efficiency and good quality. The wood grapple allows for easy loading and unloading of the big wood logs, making it a convenient and efficient tool for the job.
One of the key features of this log grapple loader is its wheel loader log grapple, which allows for excellent mobility and stability while working on rough terrain. The front end loader log grapple is also designed for maximum durability and resistance to wear and tear, ensuring it can handle heavy loads and demanding work environments. The log grapple loader also boasts a low price, making it an affordable option for those needing a robust and reliable machine for their wood yard or forest operations.
Overall, the TM12J 12Ton log grapple wheel loader is an excellent option for anyone in need of a front end log loader that can handle large wood logs and heavy timber with ease. Its Weichai engine, Komatsu technology log clamp, wood grapple, and wheel loader log grapple, front end loader log grapple make it a powerful and efficient machine that can handle demanding work environments while being easy to load and unload the big wood log, heavy timber. With its high efficiency, good quality, and low price, it is an excellent choice for anyone looking for a log grapple loader.
Products Features
- The wheel loader is equipped with a high-end Weichai engine known for its high efficiency and low-noise cooling technology. This powerful and reliable engine ensures that the machine performs at its best.
- The log grapple loader tank is reinforced for added strength and durability. With a fuel capacity of 280L, it can handle long and continuous operations without requiring frequent refilling.
- The wood clamp front-end loader counterweight is designed with a large steering angle and thick slabs for added reliability and practicality.
- The boom and rotating bucket cylinders are reinforced for added strength and durability.
- The drive axle is enhanced with a professional drive axle, bearing gears, wheels hub, increased block bearing, unique heavy vehicle brake materials, and advanced hydraulic technology. This ensures effective brake performance and reduces the fault rate.
- The timber clamp pay loader boom is lengthened and made with a double-thick type design to increase strength and shift within the fulcrum force.
- The timber grapple shovel loader features a particular design and manufacture of the front and rear frame, providing vital support and lateral stability for the vehicle.
- The tires are specially designed for use in the forest, ensuring maximum traction and stability on rough terrain.
Products Main Specifications
|
Model |
LT12J |
|
Operating weight |
26300kg |
|
Rated load |
12000kg |
|
Engine model |
WD10G270E201 |
|
Rated power |
199KW |
|
Rated rotate speed |
2200r/min |
|
Max. torque |
1100N.m |
|
Breakout force |
≥225KN |
|
Driving speed |
|
|
Forward Ⅰ |
0-6.5km/h |
|
Forward Ⅱ |
0-12.5km/h |
|
Forward Ⅲ |
0-24km/h |
|
Forward Ⅳ |
0-41km/h |
|
ReverseⅠ |
0-6.5km/h |
|
ReverseⅡ |
0-12.5km/h |
|
Grade ability |
25° |
|
Overall length |
9650mm |
|
Overall width |
2870mm |
|
Overall height |
3800mm |
|
Wheelbase |
3600mm |
|
Track base |
2360mm |
|
Min. Ground clearance |
480mm |
|
Max. Dumping height |
3800mm |
|
Max. dumping reach |
1450mm |
|
Lift time |
≤6.8s |
|
Total |
≤12.5s |
|
Tyre |
26.5-25(Front, Rear 26.5R25) |
