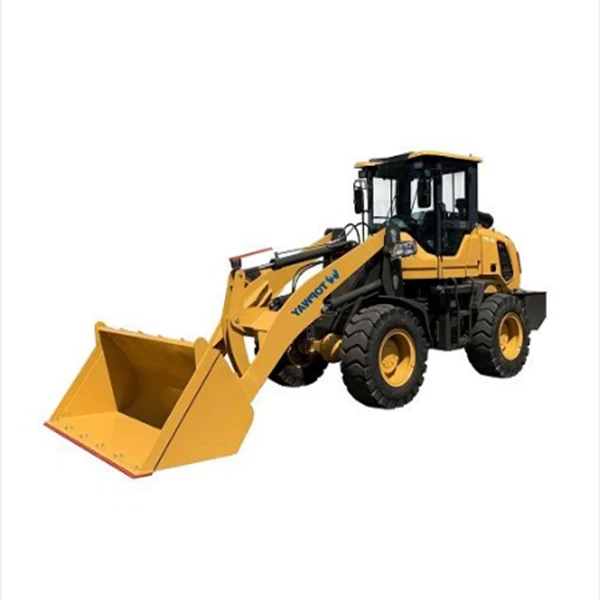

The Mini Tractor with Front End Loader is a powerful and versatile machine that can handle a variety of tasks in both commercial and residential settings. With its compact size and powerful engine, this tractor is ideal for cleaning up debris, digging, grading, and moving soil, rocks, and other materials.
One of the main advantages of using the Mini Tractor with Front End Loader is its ease of use. Designed with user-friendly controls and a maneuverable frame, this tractor is intuitive to operate, even for novices. Its compact size also makes it easier to navigate tight spaces, such as narrow driveways and walkways.
Another benefit of this tractor is its safety features. With a sturdy frame, durable tires, and secure seatbelts, users can rely on this machine to provide a safe working environment. Additionally, the front-end loader is engineered with high-quality hydraulic systems that reduce the risk of accidents or breakdowns.
To operate the Mini Tractor with Front End Loader effectively, it is important to follow certain techniques. For example, operators should be careful not to overload the front-end loader beyond the recommended weight capacity. It is also important to maintain the tractor's tires and hydraulic systems and to operate the machine on level surfaces whenever possible.
Overall, the Mini Tractor with Front End Loader is an excellent investment for anyone who needs to handle heavy-duty tasks in a variety of settings. With its compact size, powerful engine, and user-friendly controls, this machine offers a winning combination of efficiency, safety, and versatility.
Product parameters
|
Model |
ZL20 |
|
Rated loading |
2000kg |
|
Overall weight |
5000kg |
|
Rated bucket capacity |
1.0m3 |
|
Maximum traction force |
≥58KN |
|
Maximum breakout force |
≥55KN |
|
Maximum grade ability |
30℃ |
|
Maximum dump height |
3100mm |
|
Maximum dump reach |
780mm |
|
Overall dimension (L*W*H) |
6200*2400*2950mm |
|
Minimum turning radius |
4750mm |
|
Engine Model |
YN38GBZ |
|
Type |
Inline water-cooled, four-stroke |
|
Rated power |
76kw |
|
Maximum torque |
500N.m |
|
Torque converter |
ZL10 |
|
Gearbox mode |
Countershaft power-shift |
|
Gear shift |
2 forward shift 2 reverse shift |
|
Maximum speed |
28km/h |
|
Main reducing mode |
Circular Arc Bevel gear, single stage |
|
Decelerating mode |
Single-stage planetary type |
|
Wheelbase (mm) |
2400mm |
|
Wheel tread |
1528mm |
|
Ground clearance |
310mm |
|
System working pressure |
16MPa |
|
Boom lifting time |
4.8s±0.2s |
|
Total time |
9.2s±0.5s |
|
Fuel tank capacity |
80L |
|
The function of leveling automatically |
Yes |
|
Service brake |
Air assist disc brake on 4 wheels |
|
Parking brake |
Flexible shaft-operated external drum |
|
Type specification |
16/70—20 |
Products FAQ
1. What kind of driver does a wheel loader need?
Drivers should be trained and familiar with machine operation and safety regulations.
2. What insurance measures are required for wheel loaders?
Insurance measures include regular maintenance, hazard mitigation and driver training.
3. How often does a wheel loader require maintenance?
It is recommended that the machine be maintained at regular intervals, depending on usage and the model of the machine.
