10 Ton Diesel Forklift

Name: 10 Ton Diesel Forklift
Brand: TOPWAY
SKU: 224989355

Products Description Main Features: The hydraulic drive system provides a stable and efficient driving effect The hyperbolic design of the main reducer of drive axles realizes smooth meshing, extends the working life of the axle The hood is installed with heat-insulated and sound-absorbing...

Send Inquiry

Description

Products Description

Main Features:

The hydraulic drive system provides a stable and efficient driving effect
The hyperbolic design of the main reducer of drive axles realizes smooth meshing, extends the working life of the axle
The hood is installed with heat-insulated and sound-absorbing material which reduces the noise
Meticulously designed according to ergonomics which enlarges the working space and minimizes the fatigue of the operator
A sensitive drum brake is more safe and reliable
The streamlined design of the balanced weight makes the attractive and unique appearance

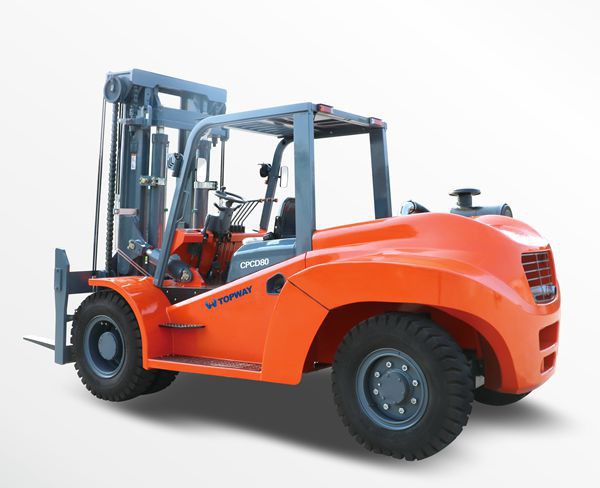

Main Technical Specifications for TM Series Diesel Forklift

Model		Unit	CPCD50	CPCD60	CPCD70	CPCD80	CPCD100
Load Capacity		Kg	5000	6000	7000	8000	10000
Load Center		mm	600	600	600	600	600
Mast Lifting height		mm	3000	3000	3000	3000	3000
Mast Free Lift		mm	205	205	205	205	125
Mast lifting Speed (With Load)		mm/s	465	395	325	440	390
Mast tilt (Front/Rear )		°	6°/ 12°	6°/ 12°	6°/ 12°	6°/ 12°	6°/ 12°
Driving Speed		km/h	27	25	25	26	29
Turning Radius		mm	3250	3300	3400	3400	4100
Ground clearance		mm	210	210	235	175	220
Form Size	Length to face of forks	mm	3440	3470	3688	3688	5575
	Overall width	mm	1995	1995	1995	1995	2030
	Height of overhead guard (cabin)	mm	2450	2450	2450	2450	2860
	Height of mast, extended	mm	3930	3930	3930	3930	4625
Wheelbase		mm	2250	2250	2250	2250	2700
Tread	Fron	mm	1470	1470	1470	1470	1516
Tread	Rear	mm	1700	1700	1700	1700	1660
Overhang (front)		mm	407	407	407	618	718
Fork		mm	60x150x1220	60x150x1220	70x150x1220	80x150x1220	80x175x1220
Service Weight		kg	8160	8640	9460	10460	11750

Engine Options:

Load Capacity	5-8Ton				10Ton
Model	Chinese engine	ISUZU6BG1	Mitsubishi S6S-T	Perkins1104C-44T	Chinese engine	ISUZU6BG1
Rated Output (KW)	83	82.4	67.7	74.5	83	82.4
Rated power speed (RPM)	2200	2000	2300	2300	2200	2000
