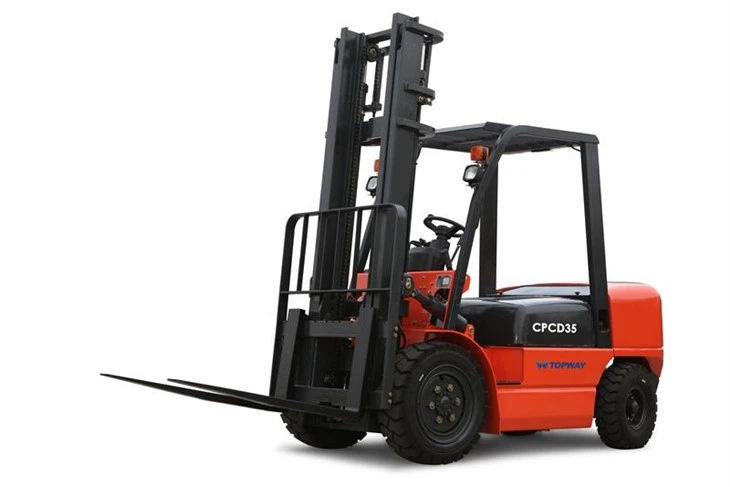

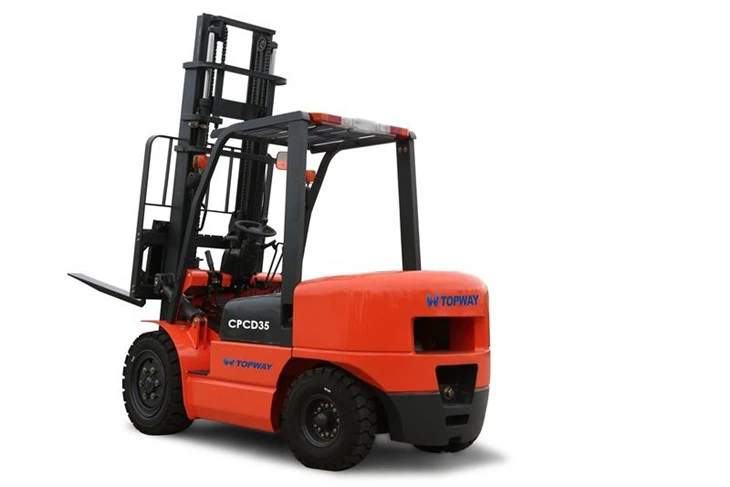

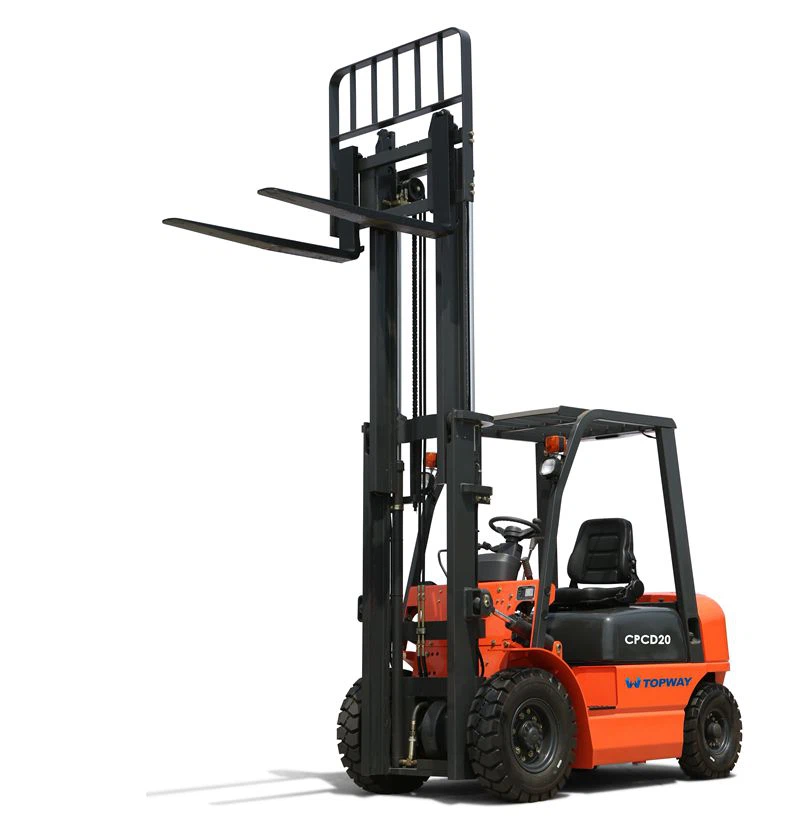

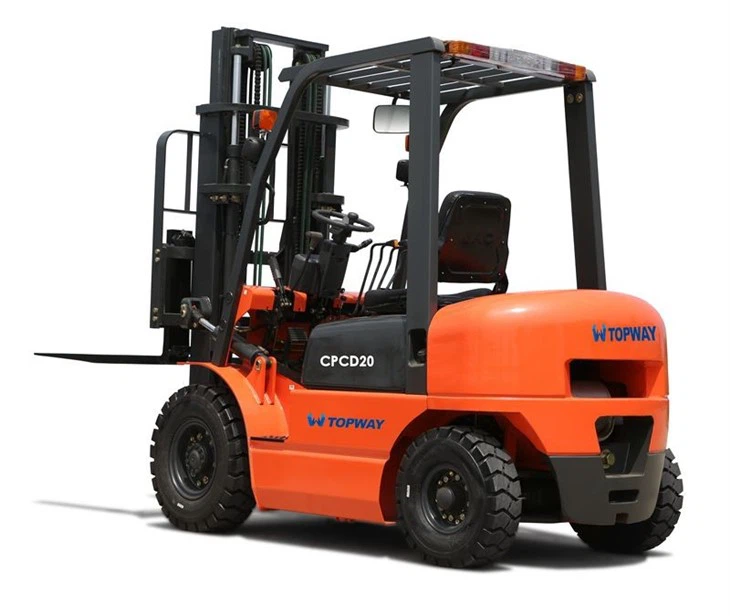

3.5 Ton Diesel Forklift

Name: 3.5 Ton Diesel Forklift
Brand: TOPWAY
SKU: 223191606

Model(Unit)：CPCD20/CPCD25/CPCD30/CPCD35
Load Capacity(Kg):2000/2500/3000/3500
Load Center(mm):500/500/500/500

Send Inquiry

Description

Products Description

A 3.5-ton diesel forklift is a type of industrial forklift truck powered by a diesel engine and designed to lift and transport heavy loads weighing up to 3.5 tons (3,500 kilograms). 3.5Ton diesel forklift with a powerful engine, in combination with a stable high-efficiency transmission system, takes full advantage of its power and torque output. These forklifts are commonly used in warehouses, construction sites, shipping yards, and other industrial settings to move heavy materials and goods efficiently. Diesel forklifts are known for their robustness, power, and ability to handle demanding work environments. They offer good torque and durability, making them suitable for outdoor use and applications requiring heavy lifting capacities.

This forklift boasts several key features:

Top-notch Drive System and TCM Technology Gearbox: Equipped with a high-quality drive system and an advanced gearbox utilizing TCM technology, ensuring reliable and efficient operation.

Aluminum Radiator for Superior Heat Dissipation: Incorporates an aluminum radiator that excels in dissipating heat effectively, enhancing overall performance.

High-Level Air Intake System: A strategically positioned air intake system prevents dust from entering the engine, thereby extending the engine's lifespan and ensuring optimal functioning.

Adjustable Seat and Steering Wheel: Designed with an adjustable seat and steering wheel, providing a more spacious and comfortable working environment for operators.

Sleek Design of Balance Weight: The streamlined design of the balance weight contributes to an attractive and distinctive appearance, enhancing the forklift's aesthetic appeal.

Easy Maintenance with Hood's Wide Opening Angle: Facilitates hassle-free maintenance due to the large opening angle of the hood, allowing easy access to components for servicing and repairs.

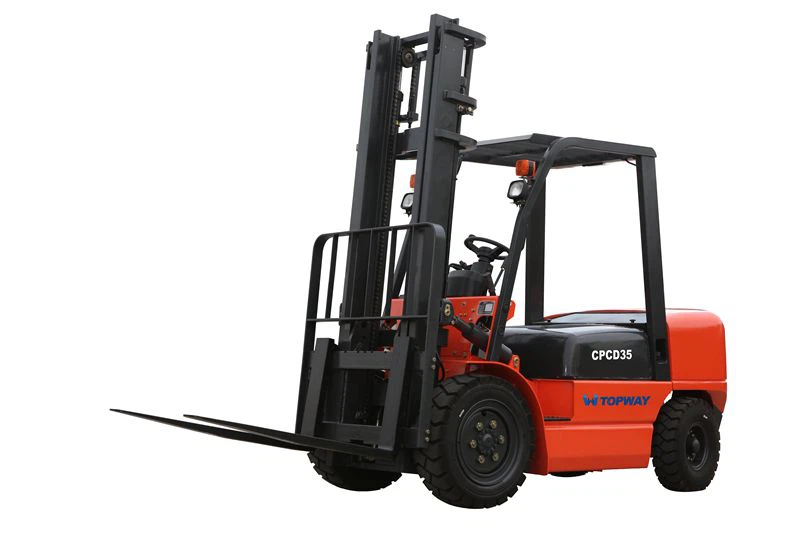

product-800-533

Main specifications:

Model		Unit	CPCD20	CPCD25	CPCD30	CPCD35
Load Capacity		Kg	2000	2500	3000	3500
Load Center		mm	500	500	500	500
Mast Lifting height		mm	3000	3000	3000	3000
Mast Free Lift		mm	160	160	165	165
Mast lifting Speed (With Load)		mm/s	500	500	450	420
Mast tilt (Front/Rear )			6°/ 12°	6°/ 12°	6°/ 12°	6°/ 12°
Driving Speed		km/h	19.5	19.5	19	18.5
Turning Radius		mm	2170	2245	2465	2500
Ground clearance		mm	115	115	140	140
Form Size	Length to face of forks	mm	2485	2560	2744	2779
	Overall width	mm	1160	1160	1220	1220
	Height of overhead guard (cabin)	mm	2070	2070	2090	2090
	Height of mast, extended	mm	4030	4030	4260	4260
Wheelbase		mm	1600	1600	1740	1740
Tread	Front	mm	970	970	1000	1000
	Rear	mm	970	970	970	970
Overhang (front)		mm	465	465	474	474
Fork		mm	40x122x1070	40x122x1070	40x120x1070	40x120x1070
Service Weight		kg	3510	3730	4300	4560

Engine information:

Load Capacity	2-3.5Ton
Model	Chinese engine	ISUZU C240
Rated Output (KW)	36	35.4
Rated power speed (RPM)	2650	2500
