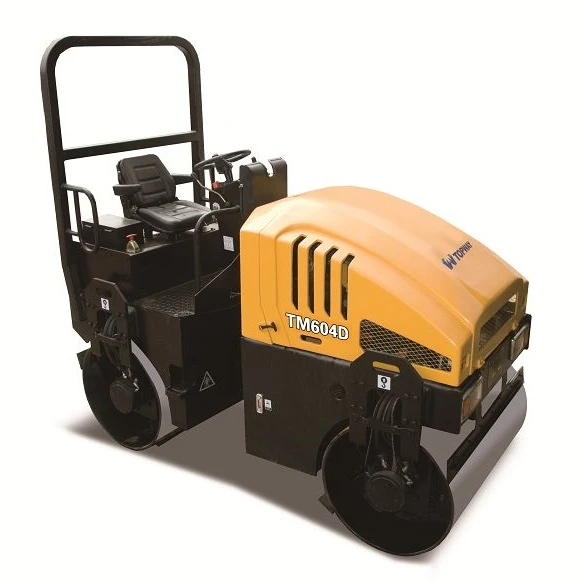

TM601D, TM602D, TM603D, TM604D Double drum vibration road roller is mainly applied to asphalt concrete, RCC concrete pavement compaction, but also can be used for sub-grade and stabilizing layer compaction
Main Features
1. The small tandem vibratory roller applied with the hydraulic pieces from internationally well-known SAUER, making it run at infinitely variable speeds smoothly with the proceeding, reverse and stop realized by the hydraulic drive system under the control of one lever only.
2. The vibratory road roller have framework-free fork structure applied for frame, thus enjoying a proper adhesion and unique advantages over shoulder/groove base compaction.
3. The small tandem double drum roller applying the front/rear wheels hydraulic dual vibrations, or using the front wheel for vibration and rear wheel for static rolling according to the actual operation requirements.
4. The double drum roller have fork-type frameless body structure help maintain excellent performance while working on edges.
Main Specifications
Description | Unit | TM601D | TM602D | TM603D | TM604D | |
Operating Weight | kg | 1280 | 2200 | 3000 | 4200 | |
Drum Diameter | mm | 560 | 620 | 700 | 800 | |
Drum Width | mm | 900 | 1000 | 1200 | 1300 | |
Static Linear Load | N/cm | 86 | 130 | 130 | 162 | |
Travel Speed | km/h | 0 - 8 | 0 - 7.5 | 0 - 8 | F Ⅰ 0-7.5 / Ⅱ 0-10 R 0-7.5 | |
Max. Gradeability | % | >20 | 30 | >20 | 30 | |
Min. Turing Radius (Outside) | mm | 2800 | 4400 | 4800 | 4500 | |
Min. Ground Clearance | mm | 256 | 260 | 260 | 320 | |
Steering Angle | ° | ±30° | ±25° | ±30° | ±30° | |
Swing Angle | ° | ±10° | ±12° | ±12° | ±12° | |
Vibration Frequency | Hz | 60 | 50 | 50 | 50 | |
Nominal Amplitude | mm | 0.5 | 0.5 | 0.5 | 0.4/0.5 | |
Centrifugal Force | KN | 15 | 20 | 30 | 30/38 | |
Engine | Brand | Honda | Changchai | Changchai | Perkins | |
Model | GX630 | ZN390Q | ZN390Q | 404D-22 | ||
Rated power | kW | 14.9 | 25 | 25 | 35.7 | |
Rated speed | rpm | 3200 | 2600 | 2600 | 2600 | |
Overall Dimensions (L×W×H) | mm | 2060×1043×2242 | 2615×1130×2400 | 2780×1370×2723 | 2900×1410×2860 | |
