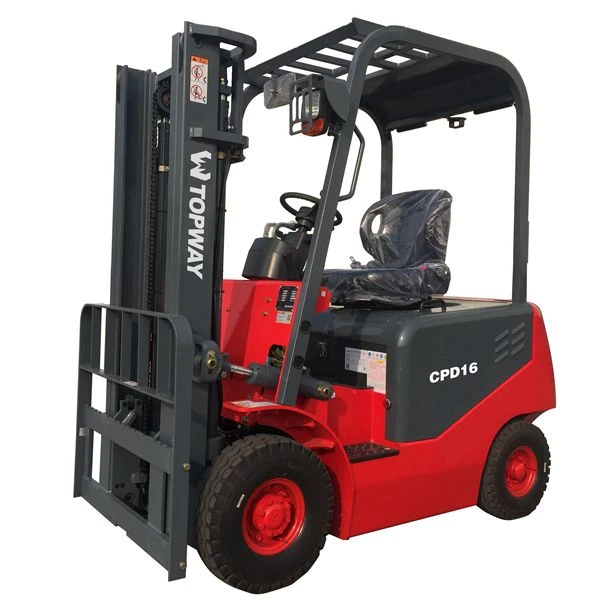

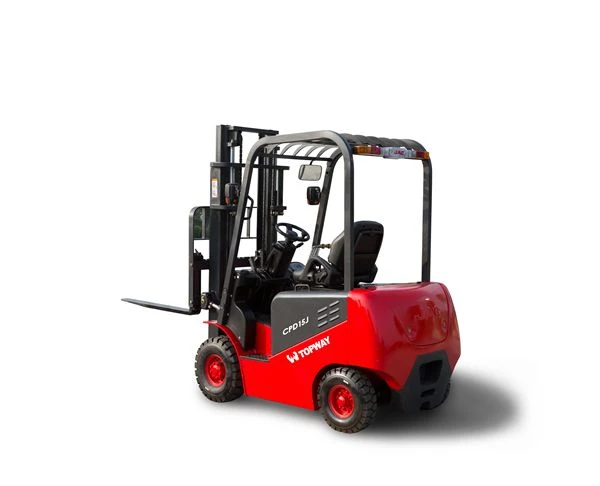

Electric Picker Forklift

Name: Electric Picker Forklift
Brand: TOPWAY
SKU: 224986247

Model (Unit):CPD10/CPD15/CPD18/CPD20
Load Capacity (Kg):1000/1500/1800/2000
Load Center (mm):500/500/500/500
Mast Lifting height (mm):3000/3000/3000/3000

Send Inquiry

Description

Products Description

An Electric Picker Forklift is a specialized type of forklift powered by electricity, designed primarily for picking and placing goods in narrow aisles and confined spaces within warehouses or distribution centers. It's equipped with a vertical mast that allows forklift operators to raise and lower loads to different heights. The compact size and maneuverability of the electric picker forklift make it ideal for efficient material handling in tight spaces, enabling operators to access inventory stored at various heights while maintaining stability and control.

With the enclosed dashboard, the simple design of the cabin creates a comfortable working environment.
With imported CURTIS electric controller to achieve outstanding heat dissipation effect.
With transverse gearbox, apart from the improvement in the transmission, enhances the single operating time of the battery.
With fan-shaped plated type drive axles, the forklift can rotate 360 degrees, easy to maintain the motor and gearbox.
The foot brake pedal is slightly higher than the CURTIS accelerator, and highly comfortable during operation.
With the CURTIS LCD instrument panel, easy to understand the working conditions of the product.

"1.6~3.5T electric AC forklifts adopt new maintenance-free AC motor, it has many features, such as simple structure, high efficiency, no carbon brush and free maintenance, etc. All the features make the cost of preventive and maintenance cheaper. 1.6~3.5T electric ac forklifts equip with large battery (80V/500Ah), trustworthy quality and long continuous working time.
The same safety design concept as the XGMA diesel forklift,1.6~3.5T electric AC forklifts equipped with wide-view mast, high strength overhead guard, and superior design frame.
Electric forklift truck is widely used in cold storage,fresh-keeping storehouse, and other places of logistics. It is suitable for working indoors, in the cabin, trunk, such as confined spaces, as well as used in the field tobacco, food, textile, printing, and other textile industries."

Product parameters

Model		Unit	CPD10	CPD15	CPD18	CPD20
Load Capacity		Kg	1000	1500	1800	2000
Load Center		mm	500	500	500	500
Mast Lifting height		mm	3000	3000	3000	3000
Mast Free Lift		mm	120	120	120	160
Mast lifting Speed (With Load)		mm/s	280	280	280	280
Mast tilt (Front/Rear )			6°/ 12°	6°/ 12°	6°/ 12°	6°/ 12°
Driving Speed		km/h	14	14	14	14
Turning Radius		mm	1900	2030	2030	2200
Ground clearance		mm	90	90	90	110
Form Size	Length to face of forks	mm	2158	2220	2220	2416
	Overall width	mm	1072	1072	1072	1150
	Height of overhead guard (cabin)	mm	2132	2132	2132	2172
	Height of mast, extended	mm	3930	3930	3930	3994
Wheelbase		mm	1370	1370	1370	1520
Tread	Front	mm	894	894	894	973
	Rear	mm	920	920	920	960
Overhang (front)		mm	407	407	407	466
Fork		mm	40x100x920	40x100x920	40x100x920	40x122x1070
Service Weight		kg	2840	3000	3120	3850
